DSHD-3146 Benzene Products Distillation Tester manufacturer from China Zhuhai Dshing Import&Export Co.,ltd

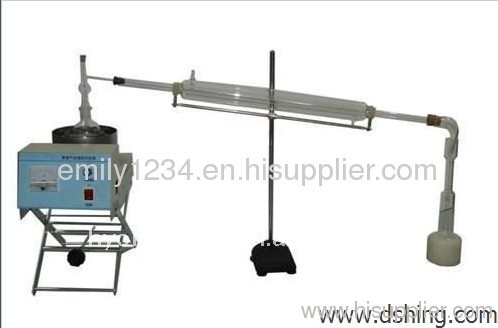

DSHD-3146 Benzene Products Distillation Tester

Price:	1.0~100.0 USD
Payment Terms:	T/T,L/C,
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,

Delivery Date: 7 days

total power consumption: not more than 1100 W

Packing: wooden case

Brand Name: dshing

Its main function is to determine distillation characteristics of benzene.

A:Brief description:

DSHD-3146 Benzene Products Distillation Tester is designed according the National Standard GB/T3146 "Test Methods for Distillation Characteristics of Benzene".

Its main function is to determine distillation characteristics of benzene.

B: Main technical features:

1. Heating power of electric furnace for distillation is 1000 W; Equipped with a up and down device; Heating power can be continuously adjusted; heating power is shown by a ampere meter;

2. The types, specifications and sizes of distillation flask and refrigeration device are in accord with GB/T3146.

3. Desktop structure; simple design, convenient installation, and complete accessories, you can make distillation determination for benzene products immediately when you get the instruments.

C: Main technical specifications and parameters

1. Relative humidity: ≤85%;

2. Power supply: AC 220V±10%, 50Hz;

3. Distilling tube with one bulb: as per GB/T 3146;

4. Ambient temperature: -10~+35°C;

5. Total power consumption: not more than 1100 W;

6. Heating system: heating power of electric furnace is 1000 W and heating rate can be continuously adjusted.

7. Distillation flask: made of harden glass; it can endure a temperature of more than 500 °C;

8. Thermometer: Each one for 70~90°C, 100~120°C, and 125~150°C; scale divisions of them are 0.1 °C; they are used to determine benzene, toluene, and xylene.

9. Refrigeration device: its total length is 8000 mm and covered with water cooling tube of 4500 mm. It is also equipped with a bending tube and a reducing graduated flask.

D:More Distllation Tester:

DSHD-255 Distillation Tester

DSHD-255A Liquid Asphalt Distillation Tester

DSHD-255G Boiling Range Tester

DSHD-3146 Benzene Products Distillation Tester

DSHD-0165A Vacuum Distillation Tester

DSHD-0165 Vacuum Distillation Tester

DSHD-6536 Distillation Tester

DSHD-6536A Distillation Tester

DSHD-6536B Low-temperature Distillation Tester

DSHD-6536C Low-temperature Distillation Tester
