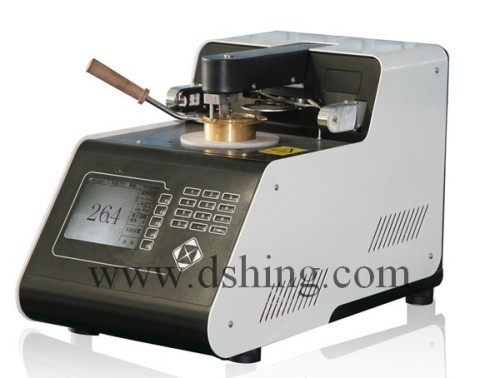

DSHY1001-I Automatic flash point and fire point tester for petroleum products ( Cleveland open cup method)

Price:	1.0~100.0 USD
Payment Terms:	T/T,L/C,
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,

Delivery Date: 7 days

Packing: wooden case

Weight: 30Kg

1.Flash & fire point pre-set, auto temperature rise2.Automatic remote control ignition and sweeping3.Temperature displaying

A:Specifications

1.Flash & fire point pre-set, auto temperature rise
2.Automatic remote control ignition and sweeping
3.Temperature displaying

B: Standards:

GB/T3536, ASTM D92, ISO2592

C: Application:

applies to the determination of flash and fire point of petroleum products. This instrument applies to liquid and high viscosity lubricating oil, but not applies to fuel oil and petroleum products with open flash point under 79℃

D:Function Features

— 5"Dot Matrix LCD display and soft keyboard operation; friendly human machine interface and software switching between Chinese and English
— Support 4 standard testing mode: flash point, fire point, flash and fire point, flash point searching
— Self diagnosis and alarm triggering, sweeping, ascend and descend, testing, fire distinguish and result search
— 500 test results can be stored
— Gas ignition with built-in fuel gas control valve. The fire can only be ignited under safe test conditions
— Fast air cooling design to shorten the interval of continual testing
— External printer for easy printing of the test result at any time (optional)
— RS232 port for connection with LIMS system of the chemical laboratory

E:Technical Specification

— Power supply: 220±10% VAC, 50±1Hz
— Power: ≤1000W
— Dimension: 300mm (width) * 550 mm (Depth) * 350 mm (height)
— Weight: 30Kg
— Environment temperature: 5~35℃; 20-90% RH without condensation (35℃)
— Testing range of flash point: 80~370℃
— Testing method of flash point: anionic ring testing
— Ignition source: liquefied gas, butane gas, gas pipe, natural gas
— Pressure in ignition tunnel: <10kPa
